ECHU PROFIBUS DP FD Data bus Cable

Name: ECHU PROFIBUS DP FD Data bus Cable
Brand: ECHU
Price: 0.5 USD

China ECHU PROFIBUS DP FD Data bus Cable wholesale

Brand Name : ECHU

Model Number : Profibus PA

Certification : CE

Place of Origin : China

MOQ : 100M

Price : USD0.5-USD1.621/m

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000KM/week

Delivery Time : 10day after receiving payment

Packaging Details : splint reel/ splint box

Type : Insulaton

Application : bus system

Rated Voltage : 300V

Rated Temp : -15℃-+80℃

Conductor Material : Tinned copper stranded conductor

Color : Purple

Insulation : PE

Jacket : PVC/PUR

Contact Now

PROFIBUS DP Data Bus Cable

The PROFIBUS DP Data Bus Cable is designed for industrial automation and communication systems, offering excellent resistance to external interference. It meets the flame-retardant requirements of IEC60332-1-2, ensuring safety and reliability in harsh environments. With a characteristic impedance of 150 ohms, this cable is ideal for maintaining signal integrity in fieldbus applications.

Applications of PROFIBUS DP FD Data Bus Cable

- Suitable for industrial fieldbus systems in automation and communication technology.

- Ideal for flexible installations in power chains.

- Well-suited for moving parts of machinery.

Technical Data of PROFIBUS DP FD Data Bus Cable

Electrical Performance	Impedance	150 Ohms
Electrical Performance	Rated Temperature	80°C
Construction	Conductor	Stranded Finely Twisted Conductor
	Insulation	Foamed PE
	Shielding	Aluminum Foil + Tinned Copper Wire
	Jacket	PVC
Flame Retardancy	Complies with IEC 60332-1-2
Default Jacket Color	Purple (Other colors available upon customer request)

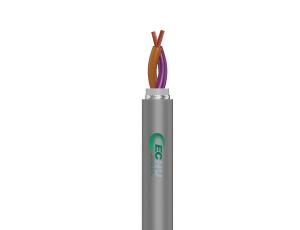

ECHU PROFIBUS DP FD Data bus Cable
